Intellitest Software

Software designed specifically for Process Fluid and Municipal Drinking Water Particle monitoring using IBR on-line water particle counting systems. Displays and records data from up to 32 particle counters and up to two user scalable analog (e.g. flow) inputs per counter.

Features You Requested:
Reports:

  • Reports you can use — including hourly, daily, and monthly summary reports
  • Particle counts in up to eight size ranges
  • User adjustable graphing and scaling in real-time
  • Calculates log removal and filter efficiencies and particle concentration, using actual real-time counts and flow meter data
  • View particle counts vs. time or size distribution
  • Single step exporting to commercial spreadsheets
  • Data files stored by day or by shift

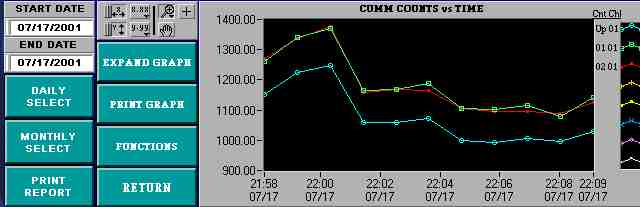

Expanded view of a filter effluent data screen

Simple Operation:

  • User interface makes operation easy
  • Operation and configuration password-protected
  • Works with off-the-shelf computers — Windows 3.1, 9x or NT operating systems supported
    • A computer with a 486DX chipset and 16 MB is sufficient to run Intellitest

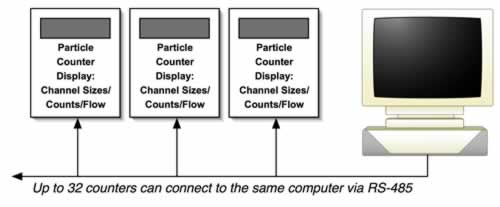

Typical System Configuration

System Integration

  • Simple, automated importing of grab sample data
  • SCADA compatible
